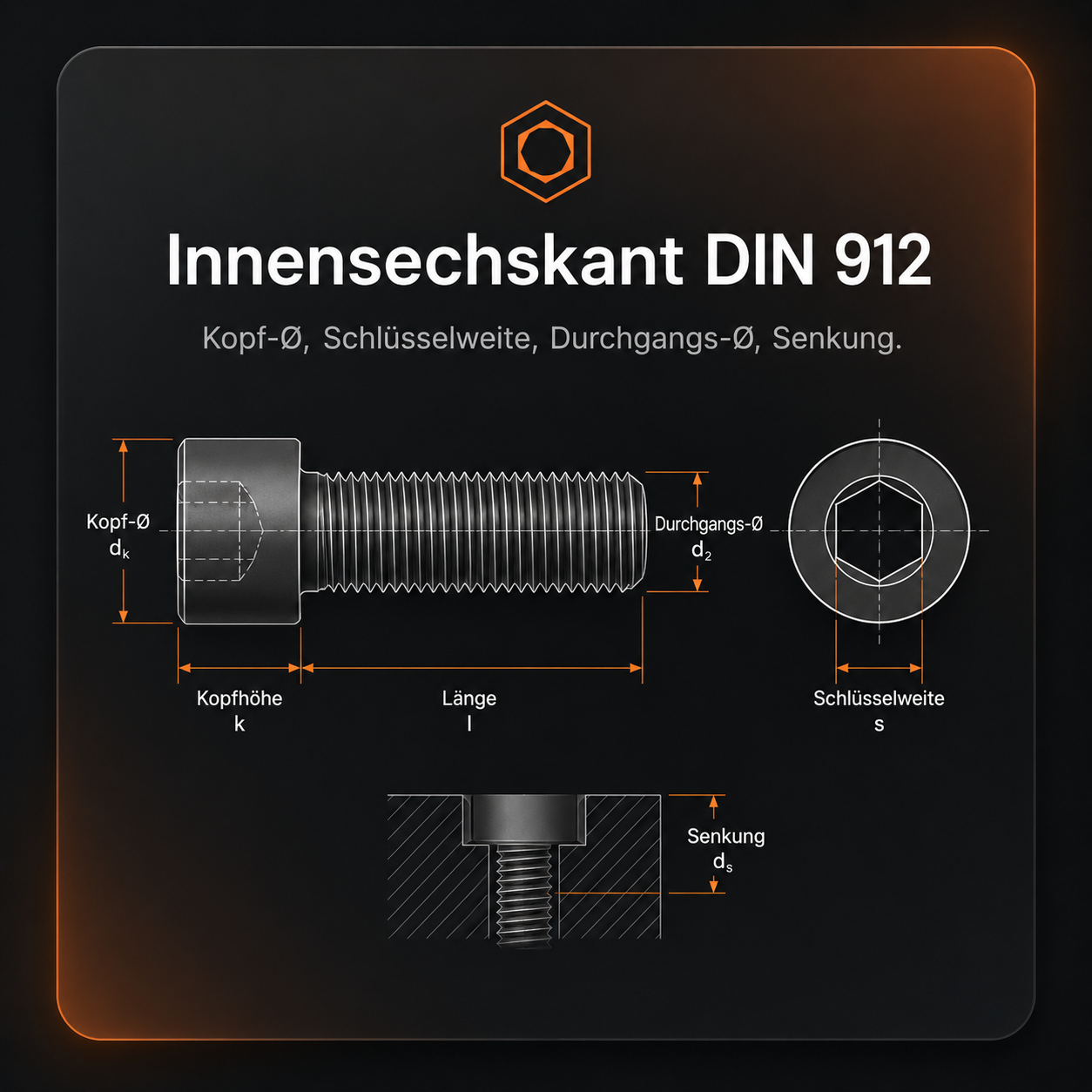

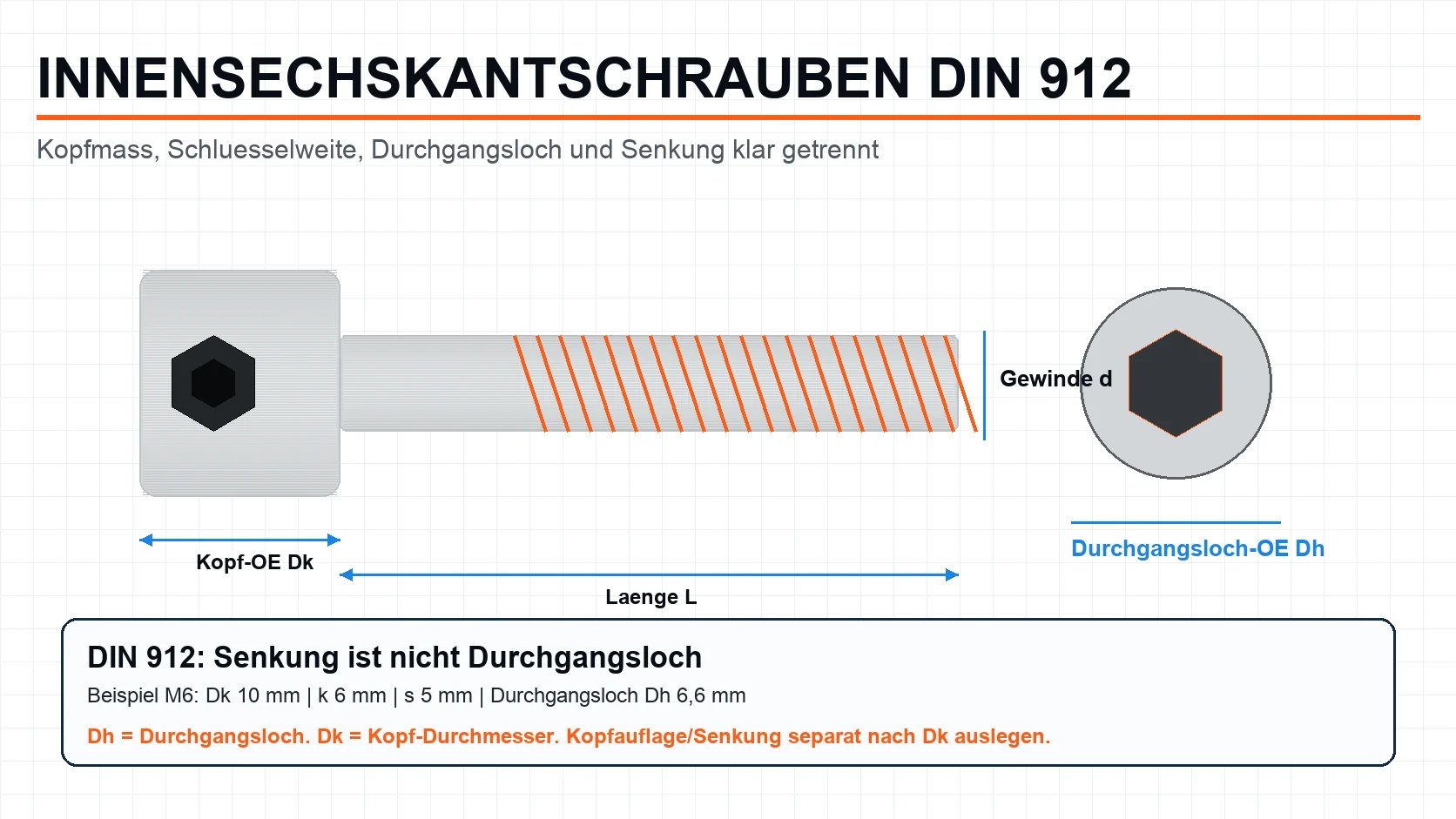

Innensechskantschrauben DIN 912
Kopfabmessungen, Durchgangsbohrung (DIN EN 20273 mittel), Senkung (DIN 974).
| Gewinde | Steigung | Kopf-Ø dₖ | Kopfhöhe k | Schlüssel s | Durchgangs-Ø dₕ | Senk-Ø | Senktiefe |
|---|---|---|---|---|---|---|---|
| M2 | 0.4 | 3.8 | 2.0 | 1.5 | 2.4 | 4.4 | 2.2 |
| M2.5 | 0.45 | 4.5 | 2.5 | 2.0 | 2.9 | 5.1 | 2.7 |
| M3 | 0.5 | 5.5 | 3.0 | 2.5 | 3.4 | 6.3 | 3.3 |
| M4 | 0.7 | 7.0 | 4.0 | 3.0 | 4.5 | 8.0 | 4.4 |
| M5 | 0.8 | 8.5 | 5.0 | 4.0 | 5.5 | 9.6 | 5.4 |
| M6 | 1.0 | 10.0 | 6.0 | 5.0 | 6.6 | 11.5 | 6.5 |
| M8 | 1.25 | 13.0 | 8.0 | 6.0 | 9.0 | 15.0 | 8.6 |
| M10 | 1.5 | 16.0 | 10.0 | 8.0 | 11.0 | 18.5 | 10.8 |
| M12 | 1.75 | 18.0 | 12.0 | 10.0 | 14.0 | 21.0 | 13.0 |
| M14 | 2.0 | 21.0 | 14.0 | 12.0 | 16.0 | 24.5 | 15.2 |
| M16 | 2.0 | 24.0 | 16.0 | 14.0 | 18.0 | 27.5 | 17.5 |
| M18 | 2.5 | 27.0 | 18.0 | 14.0 | 20.0 | 30.5 | 19.5 |
| M20 | 2.5 | 30.0 | 20.0 | 17.0 | 22.0 | 33.0 | 21.5 |
| M22 | 2.5 | 33.0 | 22.0 | 17.0 | 24.0 | 36.0 | 23.5 |
| M24 | 3.0 | 36.0 | 24.0 | 19.0 | 26.0 | 40.0 | 25.5 |
| M27 | 3.0 | 40.0 | 27.0 | 19.0 | 30.0 | 43.0 | 29.0 |
| M30 | 3.5 | 45.0 | 30.0 | 22.0 | 33.0 | 48.0 | 32.0 |
| M36 | 4.0 | 54.0 | 36.0 | 27.0 | 39.0 | 57.0 | 38.0 |
Alle Maße in mm. Durchgangsbohrung nach DIN EN 20273 Reihe „mittel"; Senkung passend zum SHCS-Kopf.
